Demystifying DC Motors: Exploring Types and Applications

When it comes to electric motors, direct current (DC) motors are essential components used in a wide range of applications. DC motors convert electrical energy into mechanical energy and find application in everything from household appliances to industrial machinery. They come in various shapes and sizes, each designed for specific purposes. This article will explore the multiple types of DC motors and their characteristics, helping you understand which type may be most suitable for your particular application.

Introduction to DC Motors

Direct current motors convert electrical energy from a DC power source into mechanical rotation. The key feature of DC motors is the flow of electrical current in one direction through the motor windings, which generates a magnetic field and causes the rotor to rotate. This fundamental principle allows for precise speed and direction control, making DC motors popular for various applications.

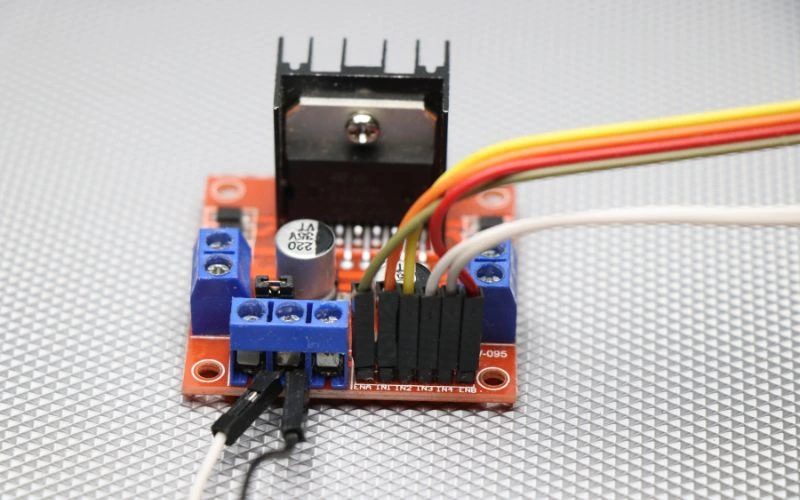

Types of DC Motors

DC motors can be broadly categorized into several types, each with distinct characteristics and advantages. Let’s explore these types in detail:

DC Brush Motors

Brushed DC motors, also known as brushed motors or simply “DC motors,” are the most basic type of DC motor. These motors include an armature (rotor) and a stator, with a commutator and brushes that supply power to the rotor. When voltage is applied to the brushes, it creates a magnetic field that propels the rotor to rotate.

Advantages of DC Brush Motors

• Simplicity and cost-effectiveness.
• Relatively high starting torque.
• It is easy to control the speed by varying the voltage.

Disadvantages of DC Brush Motors

• Limited lifespan due to brush wear.
• Electromagnetic interference (EMI) from brush arcing.
• Efficiency can decrease over time.

Brushless DC Motors

Brushless DC motors, or BLDC motors, significantly improve brushed motors by eliminating the need for brushes and commutators. Instead, BLDC motors use a controller and permanent magnets to generate a rotating magnetic field that drives the rotor. This design results in a more efficient and reliable motor.

Advantages of Brushless DC Motors

• Longer lifespan with no brushes to wear out.
• Higher efficiency and power density.
• Reduced EMI and electrical noise.

Disadvantages of Brushless DC Motors

• Typically more expensive than brushed DC motors.
• Require a more complex control system.

Series Wound DC Motors

Series wound DC motors have their armature and field windings connected in series. This configuration provides high starting torque, making them suitable for applications where heavy loads must be accelerated. Series wound DC motors, such as electric vehicles and forklifts, are often used in traction applications.

Advantages of Series Wound DC Motors

• Exceptional starting torque.
• Well-suited for applications requiring rapid acceleration.
• Simple and robust design.

Disadvantages of Series Wound DC Motors

• Limited speed control due to the series-wound configuration.
• Inefficient at high speeds.
• Prone to overheating under light loads.

Shunt Wound DC Motors

In shunt wound DC motors, the armature and field windings are connected in parallel, or “shunt.” These motors provide relatively constant speed and are commonly used in applications requiring consistent performance, such as conveyor systems and industrial machinery.

Advantages of Shunt Wound DC Motors

• Excellent speed regulation and stability.
• Suitable for applications with varying load conditions.
• Longer operational lifespan compared to series wound motors.

Disadvantages of Shunt Wound DC Motors

• Lower starting torque than series wound motors.
• Less torque at low speeds.
• It can be more complex to control than other types.

Compound Wound DC Motors

Compound wound DC motors combine elements of both series and shunt wound motors. They feature both series and shunt field windings, offering high starting torque and good speed regulation advantages. These motors are often used in applications requiring a balance between torque and speed, such as winches and hoists.

Advantages of Compound Wound DC Motors

• Balanced performance with good torque and speed control.
• Versatile for various applications.
• Efficient and durable.

Disadvantages of Compound Wound DC Motors

• Complexity in winding design and control.
• It may require more maintenance than some other types.

Applications of DC Motors

Due to their versatility and control characteristics, DC motors find application in a wide range of industries and devices. Some common applications include:

• Automotive: DC motors are used in electric windows, windshield wipers, and power seats.
• Industrial Machinery: They power conveyors, lifts, and heavy machinery.
• Consumer Electronics: DC motors are found in hairdryers, shavers, and DVD players.
• Aerospace: They are used in aircraft actuators and controls.
• Medical Devices: DC motors drive various medical equipment.
• Robotics: They are vital components of robotic arms and automated machinery.
• Renewable Energy: DC motors play a role in solar tracking systems and wind turbines.
• Toys: Many remote-controlled toys utilize small DC motors for movement.

Conclusion

FAQs

1. What is the primary advantage of brushless DC motors?

The primary advantage of brushless DC motors is their longer lifespan and higher efficiency compared to brushed DC motors. Since BLDC motors do not have brushes and commutators, the motor components have less wear and tear. This results in improved durability and reduced maintenance requirements.

2. How are DC motors different from AC motors?

The key difference between DC motors and AC motors lies in the type of current they operate on. DC motors use direct current, where the electrical current flows in one direction. AC motors, on the other hand, use alternating current, which reverses direction periodically. This fundamental difference affects their construction, control, and performance characteristics.

3. What factors should I consider when choosing a DC motor for my application?

When selecting a DC motor for a specific application, consider the required torque, speed, voltage supply, and control options. Additionally, think about the operating environment, the need for precision, and the motor’s expected lifespan. Each type of DC motor has its strengths and weaknesses, so choosing the right one depends on your application’s specific requirements.
