Exploring the Magnetic Field due to a Circular Conductor (Solenoid)
The Magnetic Field of a Solenoid
A solenoid, a coil of wire wound in a helix, represents an intricate arrangement of circular conductors. The magnetic field within a solenoid is characterized by its uniformity and strength, making it a key element in various electromagnetic applications.
Factors Influencing the Magnetic Field in a Solenoid
The magnetic field within a solenoid is influenced by several factors, including:
- Number of Turns: The more turns a solenoid has, the stronger its magnetic field becomes.
- Current Magnitude: Increasing the current flowing through the solenoid amplifies the strength of the magnetic field.
- Core Material: Introducing a ferromagnetic core within the solenoid enhances its magnetic properties.
Magnetic Field Due to a Circular Conductor
A solenoid, comprising a coiled conductor often wound around a core, creates a magnetic field when subjected to a current. This field manifests along the coil’s axis and around the ring. A toroid with a circular core can also be employed, producing a robust magnet. The direction of the magnetic flux depends on the winding and the core material, establishing a correlation between the conductor’s current and the resultant magnetic field.
Laws of Magnetism
When such a conductor is excited by the supply that transmits a current, it creates a magnetic field of force that acts through the coil on its axis and around the ring. Instead of victimizing a straight core to twist the conductor, a circular seat can also wound the conductor. In such a case, the next wave (Solenoid) is termed Toroid. The use of magnetic material for the body creates a sturdy magnet. This can be because the current-carrying conductor produces its flux. Additionally, the body behaves like an inductor due to magnetic induction, having its own change. The direction of the two shifts is the same because the resultant magnetic Field of force becomes stronger.
Rules to Determine the Direction of Flux and Magnet Poles
Unraveling the magnetic mysteries that lie within the formation of flux and rods is crucial to understanding interest behavior. By adhering to a set of fundamental rules, one can discern the direction of change and precisely identify the bars of an appeal. These rules are simple yet powerful tools in the study of magnetism.
The Right-Hand Thumb Rule

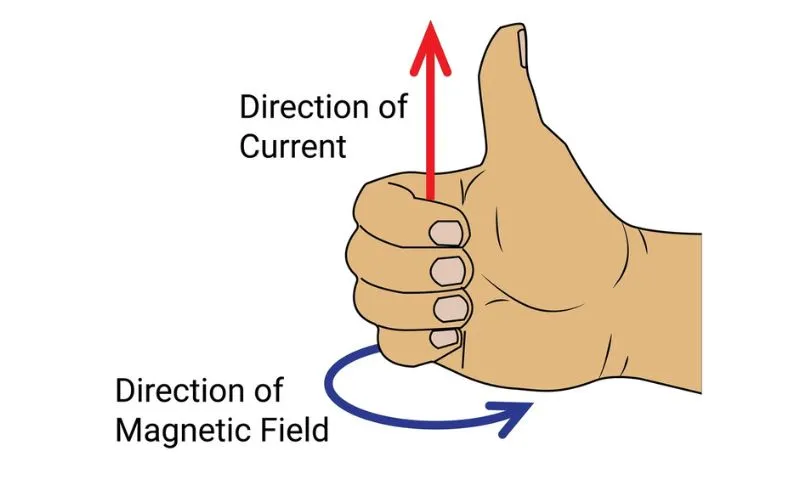

The Right-Hand Thumb Rule is a guiding principle for predicting the direction of magnetic flux and the orientation of poles in a magnet. Holding the solenoid in the right hand and aligning the curled fingers with the direction of current flow, the extended thumb points towards the North Pole or indicates the direction of flux lines. This rule provides a tangible and practical method for determining the fundamental characteristics of a magnetic field.
Hold the coil (Solenoid) within the right hand such that curled fingers point in the direction of current through the curled conductor, then the extended thumb on the axis of the coil points to the North Pole of the coil or points in the direction of flux lines within the core. This can be shown in Fig.
Corkscrew Rule
The Corkscrew Rule is a valuable tool that facilitates a deeper understanding of the magnetic field around a circular conductor. One can predict the direction of the magnetic field lines by visualizing the current flow as a corkscrew motion. Curling the right-hand fingers toward the current flow, the thumb points toward the magnetic field lines, revealing their spiral orientation. This rule proves particularly useful in analyzing complex electromagnetic systems and visualizing the three-dimensional nature of magnetic fields.
The corkscrew rule, a valuable tool in electromagnetism, allows us to determine the direction of the magnetic field around a circular conductor. Curling our right-hand fingers toward the current flow, the thumb points toward the magnetic field lines, revealing their orientation. This rule facilitates the understanding and analysis of various electromagnetic systems and devices.
If the alignment of the screw is placed on the axis of the coil (solenoid) and if the screw is turned within the direction of current, it moves in the order of the N-pole or within the law of the Field of force within the coil.
End Rule
The End Rule offers a straightforward method for determining the polarity of a coil or solenoid. By examining the coil from either end, the observer can note the apparent direction of current flow. If the current appears to circulate clockwise when viewed from one end, that end acts as the South Pole; conversely, if the current flows anticlockwise, the end functions as the North Pole. This rule provides a quick and practical method for determining the polar orientation of a magnetic structure.
Examining a coil from either end allows one to establish its polarity based on the direction of the current. Applying the right-hand thumb rule, the end where the current appears to flow clockwise acts as the S-pole, while anticlockwise flow designates the end as the N-pole.
Conclusion
In conclusion, mastering the fundamental rules governing magnetic fields empowers individuals to navigate the complexities of electromagnetism. From predicting the direction of flux using the Right-Hand Thumb Rule to visualizing magnetic field spirals with the Corkscrew Rule and determining polarities through the End Rule, these tools provide a comprehensive framework for understanding and manipulating magnetic phenomena. As technology advances, applying these rules remains integral to innovations in electronics, engineering, and other scientific disciplines.
FAQs
Why is the direction of magnetic flux important in electromagnetic systems?
The direction of magnetic flux is crucial, as it determines the orientation of magnetic field lines and influences the behavior of electromagnetic systems. Understanding this direction enables the optimization of device design and functionality, such as solenoids and coils, ensuring efficient performance in applications like motors, transformers, and generators.
What is the significance of the Corkscrew Rule in electromagnetism?
The Corkscrew Rule is invaluable for predicting the direction of the magnetic field around a circular conductor. One can determine the orientation of magnetic field lines by envisioning the current flow as a corkscrew motion. This rule facilitates the visualization of the three-dimensional nature of magnetic fields, particularly in complex electromagnetic systems.
How can the End Rule be employed to identify the polarity of a coil or solenoid?
The End Rule simplifies the determination of a coil’s polarity by examining it from either end. If the current flow appears clockwise when viewed from one end, that end acts as the South Pole. Conversely, if the current flows anticlockwise, the end functions as the North Pole. This rule provides a quick and practical means to discern the polar orientation of a magnetic structure.
