Self-Induced EMF’s Dance in Magnetic Realm: Electric Symphony

August 22, 2023 Jessica

Welcome to the mesmerizing world where the symphony of electricity and magnetism performs an intricate dance known as “Self-Induced EMF’s Dance in Magnetic Realm: Electric Symphony.” In this captivating realm, the laws of electromagnetism converge to produce a phenomenon that transcends the boundaries of the ordinary. Here, the interplay between changing magnetic fields and induced electromotive forces crafts a choreography that both astounds and enlightens. Just as a conductor leads an orchestra, the magnetic fields orchestrate a ballet of details that bring forth self-induced EMF. This captivating effect resonates throughout various electrical devices and systems. As we embark on this journey, we unravel the layers of this phenomenon, exploring its principles, implications, and applications that span from power generation to the heart of our technological landscape. Join us in experiencing the harmonious convergence of science and artistry, where the enigmatic dance of self-induced EMF unfolds within the magnetic tapestry of our electrified world.

Induced E.M.F. and Faraday’s Law in Coils

Think through a coil with several turns and carrying current ‘I’ once the switch is locked. The current magnitude is varied with the assistance of variable resistance connected nonparallel (series) with battery, coil, and control, as shown in Fig.

The flux created by the coil links with the coil itself. The overall flux linkages of the ring are going to be N Web-turns. If the present current ‘I’ is modified with the assistance of variable resistance, then the flux created can conjointly modify due to flux linkages will also change.

Exploring Self-Induced EMF in Magnetic Circuits

Hence in keeping with Faraday’s law, as a result of the rate of change of flux linkages, there’ll be an induced e.m.f. Within the coil, thus, while not physically moving coil or flux, there are induced e.m.f. Within the coil. The development is called self-induction.

The e.m.f. It is induced in a coil due to the modification of its flux linked with its known self-induced e.m.f.

Self-Inductance and Lenz’s Law in Coils

The things of the coil that opposes any modification within the current passing through it are known as Self Inductance.

As per Lenz’s law, the direction of this induced e.m.f. Will thus oppose the cause creating it. The reason is that the current I, therefore the self-induced e.m.f., an attempt to come upon a wind that is in the opposite direction to its current I once current is accrued, self-induced e.m.f. Reduces the current and tries to keep it to its original value. If current is diminished, self-induced e.m.f. It will increase contemporary and try to keep it back to its actual weight. Thus any modification in the present through the coil is opposed by the ring.

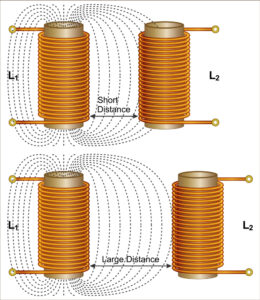

The magnitude of Self-induced E.M.F

According to Faraday’s law of magnetism induction, self-induced e.m.f. is expressed as

E = -N (dΦ/dt)

A negative sign designates that direction of this e.m.f. is opposing modification in current because it exists.

The flux is expressed as,

Φ = (Flux / Ampere) x Ampere = (Φ/I) x I

Now for a circuit, as long as permeability’ µ’ is constant, the magnitude relation of flux to current (i.e., B/H) remains stable.

Rate of modification of flux = (Φ/I) x rate of change of current.

∴ (dΦ/dt) = (Φ/I) x (dI/dt)

e = -N(Φ/I)x(dI/dt)

e = -(NΦ/I)x(dI/dt)

The constant NΦ/I during this expression is nothing. However, the quantitative measure of the property as a result of that coil opposes any modification in current.

So this constant NΦ/I is named the constant of the coefficient of self-induction and is denoted by ‘L.’

It is outlined as aux linkages per ampere current in it. Its unit is Henry (H).

A circuit possesses a coefficient of self-induction of 1 H once a current of 1Amp through it produces flux linkages of 1Wb-tum in it.

∴ e =-L (dI/dt) volts

From this equation, the self-induction coefficient is outlined.

L= (NΦ/I)

But Φ = (m.m.f/Reluctance) = NI/S
L = N.NI/IS
L = N²/s H
Now S=l/µa
L = N² / (l/µa)
L = N² µa/l = (N2 µ₀µ_ra / l) Henries
Where l = length of the magnetic circuit
A = area of cross-section of the magnetic circuit through which flux passes.

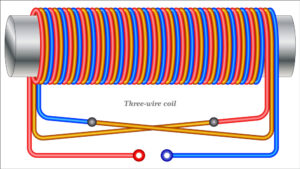

Self-Induced E.M.F.

The Mechanism of Self-Induced E.M.F.

Self-induced electromotive force (E.M.F.) in magnetic circuits arises from the changes in magnetic flux within a course, leading to voltage generation. This subheading focuses on understanding the fundamental mechanism behind self-induced E.M.F., exploring concepts such as Faraday’s law of electromagnetic induction and Lenz’s law.

Effects and Applications of Self-Induced E.M.F.

This subheading delves into self-induced E.M.F.’s practical implications and applications in magnetic circuits. It discusses how self-induced E.M.F. can oppose or assist the original current, leading to diverse effects. Furthermore, it explores various applications of self-induced E.M.F., including its significance in power generation, transformers, electric motors, and generators.

Conclusion

As our exploration of self-induced EMF’s dance within the magnetic realm concludes, we are left with a heightened appreciation for the elegance of this intricate interplay. Faraday’s and Lenz’s laws unveiled a captivating choreography, showcasing how current changes and induced electromotive forces harmonize unexpectedly. From the concept of self-inductance emerges a powerful understanding that fuels innovation in realms such as power generation and transformers. This electric symphony reminds us of the beauty of understanding the forces that shape our technological landscape. As we bid farewell to this journey, let’s carry forward our newfound insights to unravel further the secrets woven into the dynamic relationship between electricity and magnetism.

FAQs: Self-Induced EMF in Magnetic Circuits

1. What is self-induced electromotive force (EMF)?

Self-induced EMF refers to the voltage induced across a coil or circuit due to changes in the magnetic field within the same course. It is a phenomenon governed by Faraday’s law of electromagnetic induction.

2. How does self-induced EMF occur?

When the magnetic flux within a coil changes due to varying currents or external influences, an induced EMF is created in the coil itself. This phenomenon is rooted in the principles of electromagnetic induction and self-inductance.

3. What role does Lenz’s law play in self-induced EMF?

Lenz’s law states that the direction of the induced EMF will always oppose the change causing it. In the case of self-induced EMF, the induced voltage will counteract any changes in the circuit’s current.

4. What is self-inductance

Self-inductance is a property of a circuit or coil that quantifies its ability to oppose changes in current. It’s essentially the circuit’s resistance to changes in its magnetic field.

5. How does self-induced EMF affect current changes

Self-induced EMF can either assist or oppose the original current in the circuit. When the recent changes, the induced EMF either aids in maintaining the actual current value or tries to counteract the change, according to Lenz’s law.
