Insulator Selection for Enhanced Performance

Insulators are crucial in various industries, from electrical and electronic systems to thermal applications. They prevent the flow of electricity, heat, or sound, ensuring the safety and efficiency of the systems they employ. Selecting the right insulator is essential to achieve enhanced performance and reliability. This article influences insulator selection and the different types of insulators available for specific applications.

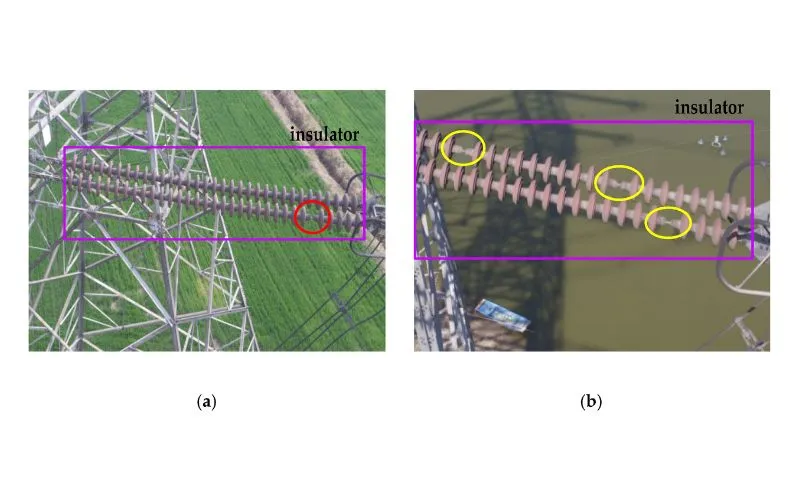

Improved Insulator Design for Energy Networks

Insulators are among the foremost vital and, however, one of the most at-risk components in energy transmission and distribution networks. Predominantly, ceramic ware and hardened glass materials, similar to metal in their conductive properties, are employed for supporting conductors on overhead transmission lines. Despite these materials being relatively brittle and inflexible, they carry the current efficiently, bearing testament to their proven service expertise, and are still widely used.

In recent times, the design of synthetic-type insulators has improved electrically and mechanically. Composites of rubber and plastic, these insulators are finding increased usage in municipal areas to reduce air-based radio interference. They also serve as a robust solution in zones where gunshot or stone-throwing poses a significant issue. Insulator material damage could occur due to diverse causes such as power arcs, lightning, corrosion, gunshot, stone throwing, and pollution.

The following points should be thought about within the choice of suitable insulation for the overhead transmission line:

• 50Hz performance
• Impulse abilities
• Switching abilities

Types of Protective Relays and Their Functions

Insulators are used in electrical systems to provide insulation and support for conductors, preventing electrical leakage and ensuring safe and efficient electricity transmission. There are several types of insulators commonly used in various applications.

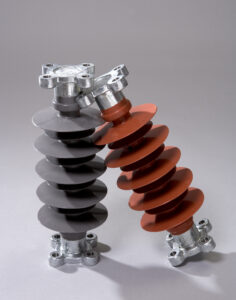

Post Insulators

These insulators are single-piece ceramic ware construction and concreted on a galvanized ductile forged iron base providing a tapped hole for fitting studs. It’ll be apparent that this kind of construction renders it virtually non-puncturable, and an extra benefit is that if any enlargement of the cemented base joint occurs, the ceramic ware is placed into solidity. If this happens with the cemented joint of the fixed lead cap of the pin sort material, as mentioned higher than, the ceramic ware is employed in tension, a sort of load, which it has the slight capability to withstand, and therefore, the porcelain can fail.

Where sufficient added insulation isn’t provided by the provision (e.g., fiber material, Timber, etc.), then the materials ought to be of 2-piece or non-puncturable construction to attenuate the chance of an electrical hazard thanks to insulator failure.

Pin Insulators

This category was in the middle of the initial design, and though it’s improved electrically and automatically, it’s altered very little in look. It provides the foremost cost-effective, humble, and effective technique of conductor provision for voltage up to and as well as 33kV. Pin-sort insulators for the lesser voltages are intended so that the puncture voltage is on top of the electric arc voltage. Still, if the material glazing below the conductor is broken (commonly affected by vibration), the material might puncture.

Sound Insulators

These specialized insulators are designed to minimize sound transmission between different areas. Soundproofing applications use acoustic foam, mass-loaded vinyl, and sound-dampening barriers.

Polymer Insulators

Polymer or composite insulators offer lightweight and flexible alternatives to traditional ceramic insulators. They are commonly used in power distribution networks and outdoor applications due to their excellent weather resistance.

Glass Insulators

Glass insulators were historically used in electrical systems and can still be found in older installations. Though less common now, they remain valued for their aesthetic appeal.

Thermal Insulators

Thermal insulators are used to reduce heat transfer. Fiberglass, mineral wool, foam, and aerogels are commonly used in building insulation, refrigeration, and other thermal applications.

Causes and Effect of Faults in the Power System

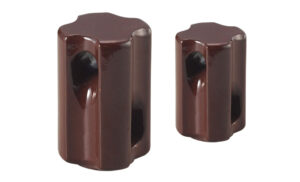

Stay Insulators

The stay insulators inserted within the stay wire is typical of ceramic ware and are so designed that in the incident of the failure of the stay insulator, the stay wire won’t fall to the ground. The stays wire attached to woody poles supporting lively conductors must be fixed with stay insulators. An insulator must be riding 2.7 meters perpendicularly beyond the earth and require a misty power frequency flashover voltage not but one and a half times the best voltage conductor supported by the pole.

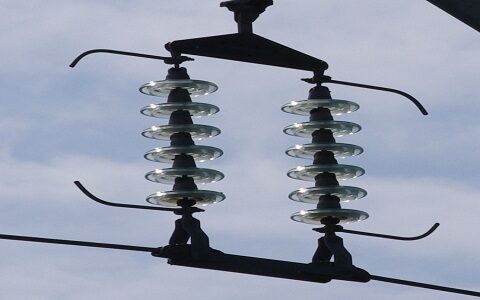

Cap and Pin type Disc Insulators

These insulators are used at strain situations (i.e., Suspension and termination) in high voltage transmission lines and are obtainable in 70kN and 160kV strength to suit the assorted conductor loading. The cap and pin style ensures that the high material’s ceramic ware or glass is usually firm. In the place of high pollution, notably coastal areas, the pin of the material should be fitted with a Zinc collar.

These are just some of the common types of insulators used in electrical systems. The choice of insulator depends on factors such as voltage level, environmental conditions, mechanical requirements, and specific application needs. Different insulator types offer varying levels of electrical insulation, mechanical strength, and resistance to weathering, making it crucial to select the most appropriate insulator for each application.

Insulation Testing

All porcelain padding reserved out of service should be tested before reelection. Hardened glass insulators needn’t be tested since the tiniest fault can source disintegration of the material. Facts on the choice of insulators are contained within the style manual section on “Insulators.”

Conclusion

Insulators are essential in energy transmission and distribution networks, supporting line conductors. Traditional materials like ceramic and glass are brittle but widely used. Improved synthetic insulators offer better performance. Suspension insulators with discs and strings keep overhead lines, while shackle insulators secure distribution lines. Strain insulators manage stress at tower attachments. Polymer insulators are lightweight and durable. Proper selection and positioning of insulators ensure system efficiency and safety. Advances in polymer technology enhance transmission lines and distribution equipment.
