Exploring the Versatility of HRC Fuse and Its Various Types
The abbreviation of HRC fuse is High Rupturing Capacity Cartridge fuse. It is one of the easiest forms of fuse, which is used for distribution. HRC fuse consists of a fuse wire, which carries the short circuit current to a limited period. During the short circuit period, the fuse wire doesn’t melt if the fault is removed immediately.
If the fault occurs continuously, the fuse element melts and disconnects the circuits from the supply. The low and uncertain breaking capacity of semi-closed fuses is overcome in HRC Fuses. Generally, the material used for the HRC fuse is glass, but this is not always true. Other than glass, some chemical compounds make HRC fuse and depend on a construction based on different factors. HRC fuse can be classifieds into three types and are
- NH type fuse,
- DIN-type fuse and
- Blade contact fuse.
Construction of HRC Fuse

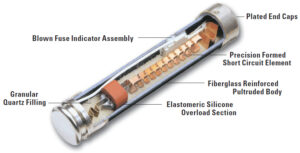

The body of this fuse is highly heat-resisting ceramic with metal end caps at both ends, which are welded by silver current-carrying element and cylindrical. The fuse element is generally silver, attached between the fixed elements. The fuse body surrounding the space is filled with quartz sand, plaster of Paris, or marble dust.
Operation of HRC Fuse
The HRC fuse element is melted and vaporized whenever the current flows through the fuse are higher than the rated current. The filling powder material is selected such that its chemical reaction with silver vapor forms a very high resistance substance, which helps quench the arc in the fuse. The high resistance is converted into an insulator like glass beads as the current is cut off. The electrical phenomenon of the HRC fuse includes the rise in temperature and generation of high internal pressure on the interruption of fault current.
Types of Fuses
NH Type Fuse
These types of fuses are compact in size and low weight. It protects against overload and short circuit conditions for low and medium voltage. Generally, it is used for the backup protection of motor starters and other equipment to protect against short circuits and overloads.
DIN Type Fuse
This type of fuse is generally used in air and gas insulates switch gear, mining, transformer, and feeder sectionalizing. DIN fuses are used based on their characteristic and the condition of temperature for different purposes. It is available at different voltage ratings to protect the transformers without backup protection or secondary. It has exceptional clearing capability during low over current with short circuit performance.
Blade Contact Type Fuse
It comprises a plastic body and two metal end caps are fitted in the socket ends. This type of fuse is used in automobile wiring to protect against the short circuit. It contains a low cut-off of the current. It is available in various sizes and shapes with different current ratings based on the applications.
Advantages and Disadvantages of HRC Fuses
Advantages of HRC Fuse
- It disconnects the supply high current and low current during a fault.
- Operation speed is high without noise and smoke
- It provides reliable discrimination
- No maintenance is required
- Do not deteriorate with age
- Cost is low
Disadvantages of HRC Fuse
- It needs to be replaced if the fuse element melts.
- It affects the associated switches when heat is produced due to an arc.
Application
- It protects low-voltage distribution systems against overload and short-circuit conditions.
- It provides backup protection to circuit breakers.
- It protects meshed feeders with a steady load.
Conclusion
In conclusion, the HRC (High Rupturing Capacity) fuse and its various types represent a crucial aspect of electrical safety and protection. These fuses are designed to efficiently interrupt high fault currents, preventing damage to electrical equipment and ensuring the safety of both people and property. The different types of HRC fuses, such as blade, bolted, and cartridge fuses, cater to diverse applications, offering flexibility and adaptability in various electrical systems. Their reliability, high performance, and ability to handle high currents make them indispensable components in modern power distribution networks and industrial settings. Engineers and technicians must carefully select and install the appropriate HRC fuse type to optimize electrical protection and maintain the reliability of electrical installations.
