Unravelling the Secrets: Magnetic Field Due to Straight Conductors
Magnetic Field Direction: Right-Hand Rule
Think through a straight conductor carrying a current transitory through a sheet of cardboard. Sprinkle iron fillings on the cardboard. Small tapping on the cardboard causes the iron to fill to the line within the homocentric circular pattern. The direction of the magnetic flux may be determined by putting a compass needle close to the conductor. The focus of current passing determines this law through the conductor.
Magnet and its Properties

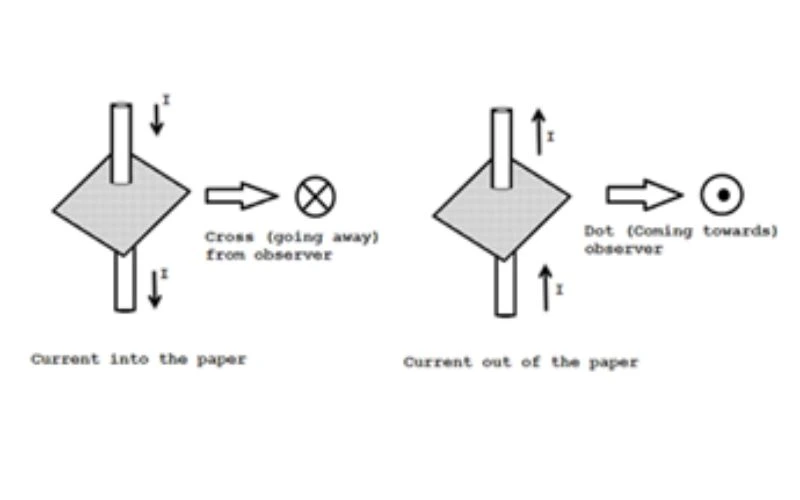

Usually, such a current-carrying conductor is delineated by a little circle. Then, the present through such a conductor can either be set out of paper or enter the paper’s plane.
-
The cross indicates the rear of the feathered finish of an arrow.
-
The dot indicates the front read, i.e., the tip of an arrow. The current can be conjointly shown in Fig.
Magnetic Poles
Magnets have two distinct poles: the north pole (N) and the south pole (S). These poles are responsible for the magnetic properties of magnets. Opposite magnetic poles attract each other, while like poles repel each other. This behavior is known as magnetic polarity.
Magnetic Field
A magnetic field surrounds a magnet and is the region where its magnetic influence can be detected. Magnetic field lines represent the direction and strength of the area. The field lines always form closed loops, extending from the magnet’s north pole to its south pole.
Magnetic Field Strength
The strength of a magnetic field is measured in units of Tesla (T) or Gauss (G). The magnetic field strength is stronger, closer to the poles of a magnet, and weaker as you move farther away.
Magnetic Domains
Inside a ferromagnetic material, there are small regions called magnetic domains. In each domain, the magnetic moments of the atoms are aligned in the same direction, creating a net magnetic field. When an external magnetic field is applied, these domains can align similarly, magnetizing the material.
Magnetic Induction
Magnetic induction is the process of magnetizing a material by bringing it close to a magnet or subjecting it to an external magnetic field. This phenomenon is the basis for various applications, such as creating temporary attractions or operating transformers.
Magnetic Hysteresis
Magnetic hysteresis refers to the lagging of magnetic induction behind the magnetizing force when a magnet is subjected to an alternating magnetic field. It is a property that causes energy losses in magnetic materials and is important to consider in designing transformers and other magnetic devices.
Flux Direction Rules & Techniques

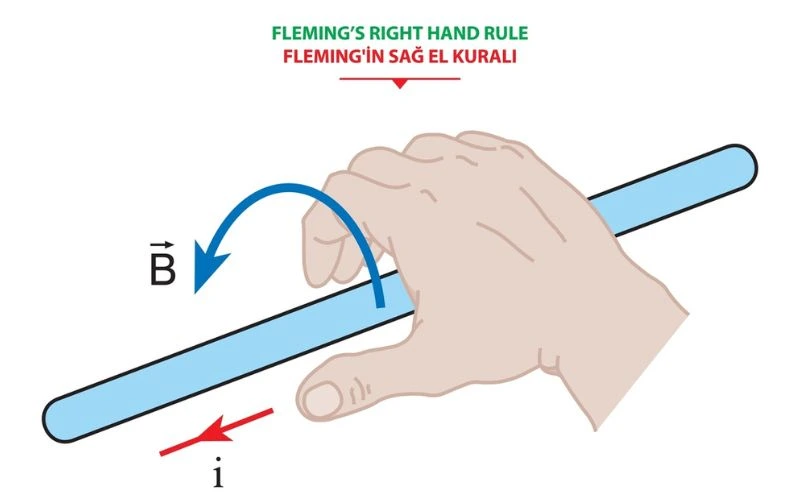

Several practices can be applied to determine the direction of the magnetic flux around a conductor. One of the most widely used rules is the right-hand grip rule. According to this rule, if the right hand is used to grip the conductor with the thumb pointing toward the electric current, the curled fingers will indicate the direction of the magnetic flux lines.
Right-Hand Thumb Rule
To apply the Right-Hand Thumb Rule, follow these steps:
- Extend your right hand with the thumb pointing toward the current flowing through the conductor.
- Curl your fingers around the conductor. The curled fingers represent the circular path of the magnetic field lines around the conductor.
- The direction in which your fingers curl indicates the direction of the magnetic field or flux lines around the conductor.
It states that hold this carrying conductor within the right hand such that the thumb informs within the direction of current and parallel to the conductor, then curled fingers purpose in the order of the magnetic field or flux around it.
For example, if the current flows from the top of the conductor to the bottom, using the Right-Hand Thumb Rule, you would find that the magnetic field or flux lines circulate clockwise around the conductor.
The Right-Hand Thumb Rule is based on Ampere’s law, which states that a magnetic field is generated around a current-carrying conductor. This rule is widely used in various applications, including the design of electromagnets, motors, and transformers. It helps engineers and scientists visualize and predict the behavior of magnetic fields around conductors, enabling them to design and optimize devices that utilize these magnetic effects.
Relation between Torque and Power
The relationship between torque and power is crucial in mechanical systems. Torque represents the rotational force, while power signifies the rate at which work is done. Torque is directly proportional to power divided by rotational speed. Increasing rotational speed decreases torque, and vice versa. The balance between torque and power is essential in optimizing system performance and efficiency. Torque is important for tasks requiring force, such as acceleration and towing capacity in automotive engines. Power is crucial for sustained high-speed performance. Understanding and manipulating the torque-power relationship helps engineers design efficient, high-performing systems across various industries.
Torque = Power / Rotational Speed
This equation illustrates that increasing the rotational speed will decrease torque for a given power output and vice versa. It highlights the trade-off between Torque and rotational speed in mechanical systems.
Corkscrew Rule

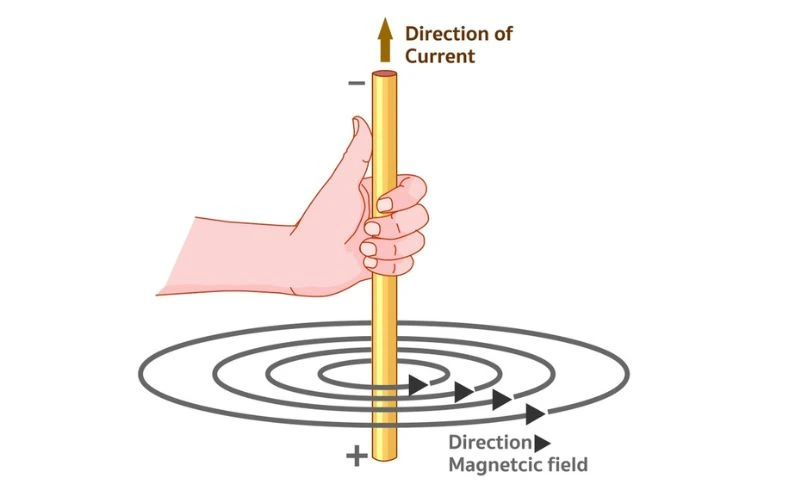

Imagine a right-handed screw on the conductor carrying current with its axis similar to the conductor and tip inform within the direction of this flow.
Then the direction of the field is given by the order during which the screw should be turned; therefore, advice within this focus.
The Corkscrew Rule is another useful tool for understanding and predicting the behavior of magnetic fields around current-carrying conductors. It complements the Right-Hand Thumb Rule and can be particularly helpful when visualizing the three-dimensional nature of the magnetic field. Using the Corkscrew Rule, engineers and researchers can accurately determine the direction of the magnetic field and apply this knowledge in designing electromagnets, motors, and other devices that utilize magnetic fields.
It is important to note that the Corkscrew Rule applies specifically to straight conductors carrying current. It provides a convenient and intuitive way to establish the direction of the magnetic field lines, allowing for precise analysis and design of electromagnetic systems.
Electric Potential and Potential Difference

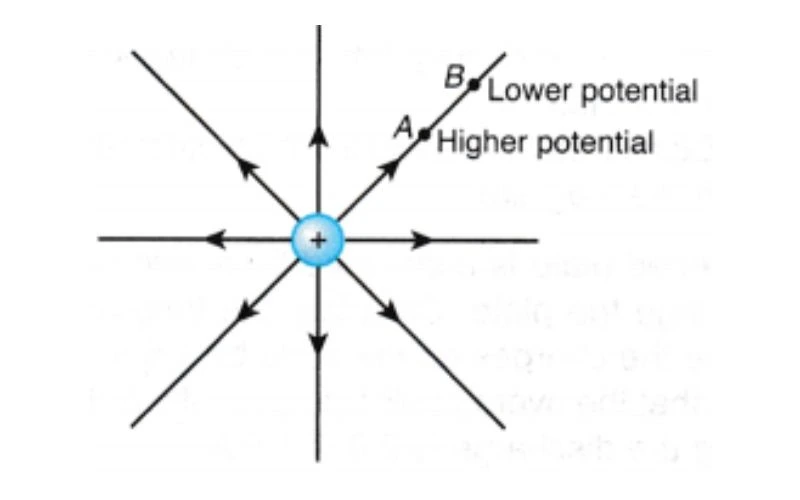

Electric potential and potential differences are fundamental concepts in electromagnetism. It represents the work done in bringing a positive test charge to that point. The potential difference measures the difference in electric potential between two points in a circuit and is also known as the voltage difference.
Conclusion
In conclusion, the study of magnetic fields generated by straight conductors provides invaluable insights into the fundamental principles of electromagnetism. Through the application of Ampere’s law, It is clear that the strength of the magnetic field around a straight conductor is directly related to the amount of current flowing through it and inversely related to the distance from the conductor. This relationship is crucial for understanding and designing various electrical and electronic systems, including power transmission lines, solenoids, and transformers. We can create innovative technologies that power our modern world by harnessing the principles of magnetic fields due to straight conductors. Continued research and exploration in this field hold the potential for further advancements and applications in diverse industries, ultimately contributing to the advancement of science and improving our daily lives.
