A Deep Dive into Magnetic Materials for Electrical Machines

The magnet properties of the magnetic materials rely on the direction of the material’s quartzes and choose the machines’ dimensions or instrumentation for a given rating, excitation needed, operation efficiency, etc.

The certain properties of the better magnetic material ought to possess are discussed under.

Less reluctance or ought to be extremely absorbent or have a large value of relative permeability µ_r.
High permeation induction (to reduce the volume of iron parts and weight).
High electric resistivity, so the eddy voltage and, therefore, eddy current loss is smaller.
Tapered hysteresis loop or less Coercivity, so hysteresis loss is a smaller value, and operation effectiveness is great.
A high temperature.
Must have a great value of energy product. It is expressed in joules / m³.

Magnetic materials will generally be classified as Paramagnetic, Diamagnetic, Ferromagnetic, Ferrimagnetic, and Antiferromagnetic. Solely Ferro-magnetic materials have magnetic properties that are well appropriate for electrical machines. Ferromagnetic properties are completely cramped to Cobalt, iron, nickel, and alloys. The sole exceptions are some alloys of metallic elements and a few group parts.

Permanent Magnets

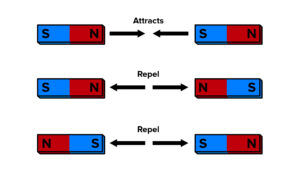

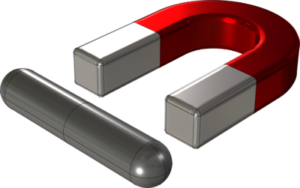

Permanent magnets have revolutionized the efficiency of electrical machines. Their ability to retain magnetic properties without an external field makes them a prime choice for numerous applications, from motors and generators to magnetic bearings. We delve into the science behind permanent magnets, including rare-earth magnets, and explore the latest advancements in magnet manufacturing that have significantly improved their performance.

Magnetic Materials: The Building Blocks of Electrical Machines

At the heart of every electrical machine lies a magnetic core, responsible for manipulating the flow of electric currents and producing mechanical work. We delve into the characteristics of different magnetic materials, such as iron, steel, and magnetic alloys, understanding their unique properties ideal for specific applications. From ferromagnetic to paramagnetic materials, each type possesses distinct magnetic behaviors that engineers carefully consider when designing electrical machines.

Conducting Materials of Electrical machine

The relative permeableness µr of Ferro-magnetic material is way bigger than 1.0. Once magnetic force (Ferromagnetic) materials are exposed to the force field, the di-poles arrange in a line within the direction of the smeared field and obtain powerfully magnetized.

Further, the magnetic force materials may be classified as arduous or Soft Magnetic and Permanent Magnetic materials.

Hard or permanent magnet material has a massive size hysteresis loop and bit-by-bit rising magnetization curve.

Ex: tungsten steel, Carbon steel, Cobalt steel, rigid ferrite, alnico, etc.

Factors to be Considered for Electrical Machine Design

Numerous factors must be carefully considered in electrical machine design to create an efficient, reliable, and cost-effective device that meets specific application requirements. These factors encompass various considerations, including performance, materials, environmental impact, and safety. The key factors to be taken into account during the design process include:

Soft magnetic material

It has a tiny size hysteresis loop and a steep magnetization curve.

Ex: i) forged iron, cast steel, rolled steel, solid steel, etc. (in the solid form).

Commonly used for yokes poles of D.C. machines, rotors of turbo generators, etc., wherever d.c. flux is concerned.

Silicon steel

It is (Iron +0.3% to 4.5% silicon) within the laminated type. Adding silicon inappropriate share reduces aging and cuts back core loss. Small silicon-contented steels or dynamo grade steel is employed in revolving electric machines and is worked at high flux density. Great contented silicon steel (4% to 5% of silicon) or transformer rating steel (or high resistance steel) is employed in transformers. More sheet steel is also hot or cold revolved. Cold-rolled grain-oriented steel (CRGOS) is expensive and superior to hot-rolled. CRGO steel is mostly utilized in transformers.

Special purpose Alloy

Nickel iron alloy has high permeableness, and the addition of chromium ends up in better magnetic material. Nickel with iron in several proportions ends up in the:

High nickel nickel-base alloy (iron + molybdenum + copper or chromium), utilized in magnetic amplifiers, current transformers, etc.
Low nickel nickel-base alloy (iron + silicon + chromium or manganese), utilized in induction coils, chokes, transformers, etc.
Terminator (iron + nickel + cobalt).
Mumetal (Copper + iron)
Pemendur (iron + cobalt + vanadium) is used for oscilloscopes, microphones, etc.

Amorphous alloys

Amorphous alloy is made by a fast set of the alloy at cooling rates of a couple of million degrees centigrade per sec. The alloy solidifies with a glass-like atomic structure that is a non-crystalline frozen liquid. Fast cooling is achieved by inflicting the molten alloy to flow through an orifice onto a rotating water-cooled drum. This will manufacture sheets as skinny as 10µm and a meter or wider.

Superconductors: A Magnetic Marvel

Superconductors have the extraordinary ability to conduct electricity with zero resistance when exposed to low temperatures. We explore how these materials have the potential to revolutionize electrical machines by achieving unparalleled efficiency and power density. Although practical applications of superconductors are still in their infancy, we discuss the current state of research and development, offering insights into their prospects in electrical machines.

Material Selection for Optimal Performance

Selecting the right magnetic material for a specific application is a complex process that requires a delicate balance between various factors, including cost, efficiency, and environmental impact. We delve into the considerations engineers face when choosing magnetic materials, considering the intended application, operational conditions, and the demand for sustainability.

Commutation in DC Machine

Commutation is fundamental in operating DC machines, including DC motors and generators. The key mechanism enables the conversion of electrical energy to mechanical energy in engines, driving motion, mechanical work, and, reversely, the transformation of mechanical energy to electrical power in generators. Commutation ensures that the armature winding current flows in a unidirectional manner, which is essential for maintaining the desired direction of rotation in motors and producing a stable output voltage in generators.

The commutation process involves the interaction between the commutator and brushes, where the meetings maintain electrical contact with the commutator segments as the rotor or armature rotates. This continuous contact allows for the transfer of current from one armature coil to another, ensuring the constant rotation of the rotor in motors or the stable voltage output in generators. Proper commutation is crucial for the smooth and efficient operation of DC machines, and challenges such as sparking, arcing, and brush wear must be carefully managed to maintain optimal performance and reliability. Advancements in commutation technology, such as electronic commutation in brushless DC motors, have further improved efficiency and reduced maintenance needs, making DC machines a versatile choice for various industrial, automotive, and consumer applications.
