The world of magnets holds an intriguing secret – the power of energy storage within magnetic fields. While we often think of interests in terms of attraction and repulsion, their ability to store energy is equally fascinating and plays a pivotal role in various technologies. This article will delve into the captivating phenomenon of energy stored in a magnetic field, exploring how it works and its practical applications that shape our modern world.

Energy storage is critical to our modern world, powering everything from smartphones to electric vehicles and even entire cities. While the most common forms of energy storage involve batteries and capacitors, another powerful and often overlooked method is energy storage in magnetic fields. Magnetic energy storage, often referred to as magnetic energy, is an exciting and promising technology that has the potential to revolutionize the way we store and use energy.

Energy Conservation in Magnetic Flux

We know that energy is needed to ascertain flux, i.e., magnetic flux; however, it’s not required to keep it up. This is often kind of like the fact that the energy is needed to lift the water through an exact height (h) that is ‘mgt’ joules. However, power isn’t necessary to keep up the water at height’ h.’ This energy ‘mgh’ gets hold of it as its potential energy and may be used for several functions.

Consider a solenoid current that may be controlled with switch S, resistance R shown in the above fig.

Switch S is initially open, and the current through coil I is zero. Once the switch is closed, the current can attempt to build its value capable to I. Neglect the resistance of the ring.

Extending this from ‘zero’ to ‘l’ and saying ‘dt’ seconds will take time. In the meantime, flux linkages related to the coil can change. Because of that, there’ll be self-induced e.m.f. within the lock whose value is given by,

e = -L (dI/dt)

So, at each instant, the coil can attempt to oppose the rise within the current. To beat this opposition, the supply must give energy to the circuit. This is often nothing; however, the power needed to ascertain this, i.e., magnetic flux or flux around the coil.

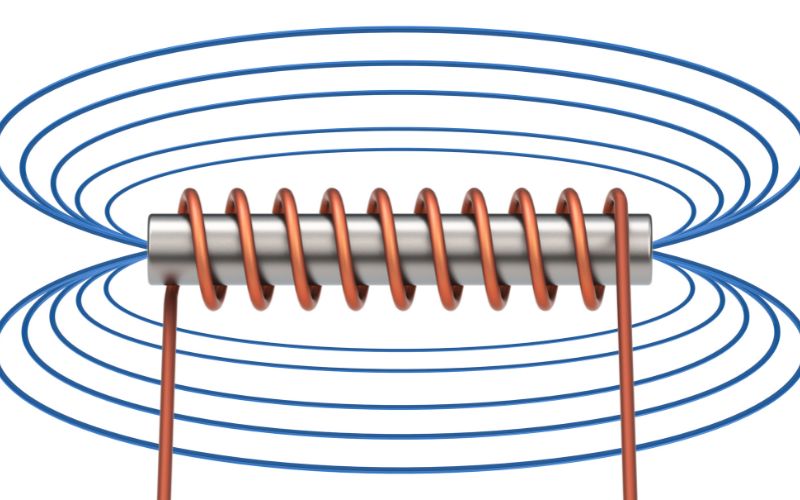

Energy Conservation in Inductive Circuits

The minute current reaches its highest value,” then the change in current stops. Thus, there can’t be any induced e.m.f. No energy Stored in Magnetic Fields will be drawn from the source within the coil. Therefore, no power is needed to keep up the established flux. This is often because induced e.m.f. It lasts as long as there’s an alteration in flux lines related to the coil, in line with Faraday’s law.

When the current is once more reduced to zero by opening the switch, the current through the coil starts decreasing, and flux starts reducing. Thus, there are induced e.m.f. Within the wave in line with Faraday’s law. However, as per Lenz’s law, it’ll attempt to oppose because creating it decreases current. Thus, this induced e.m.f. Currently, we can try to maintain the current to its original value. So instantly, this induced e.m.f. Acts as a supply and provides energy to the store. This is often nothing identical; the point held on within the magnetic flux gets recovered, whereas the field collapses. Thus, power holds on, whereas an increase within the current is reverted to the source once the current decreases, i.e., once the field collapses.

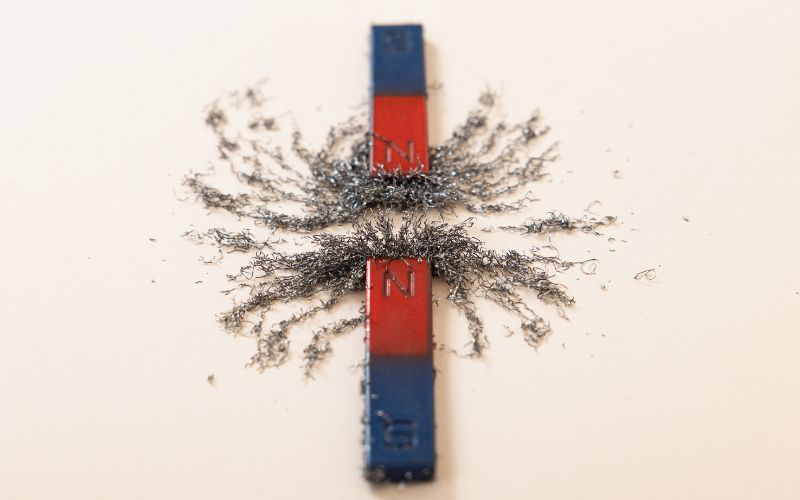

Magnetic Energy Basics

Magnetic energy is stored in the magnetic fields created by magnets or electric currents. These fields can store energy, like how a spring stores potential energy when compressed. The energy stored in a magnetic field is a function of the strength of the area and the volume it occupies. The stronger the magnetic field and the larger the book, the more energy can be stored.

How Magnetic Energy Storage Works

Magnetic energy storage can be achieved in various ways, but one of the most common methods is using superconducting magnets. Superconductors are materials that, when cooled to extremely low temperatures, exhibit zero electrical resistance. This property allows them to maintain a constant electric current indefinitely without dissipating energy as heat.

When a current flows through a superconducting coil, it generates a magnetic field. This magnetic field can store a substantial amount of energy. The key advantage of superconducting magnets for energy storage is their ability to store and release energy quickly and efficiently. This makes them ideal for applications requiring rapid energy discharge, such as in high-power electrical systems and transportation.

Applications of Magnetic Energy Storage

In the quest for efficient and sustainable energy solutions, magnetic energy storage has emerged as a key player. This innovative technology harnesses the power of magnetic fields to store and release energy, offering a range of applications that hold great promise for a greener and more reliable future. This article explores some of the most exciting applications of magnetic energy storage and their potential to reshape the energy landscape.

Renewable Energy Integration

One of the most compelling applications of magnetic energy storage is the integration of renewable energy sources, such as wind and solar power, into the electrical grid. These sources often produce variable and unpredictable energy outputs. Magnetic energy storage systems, like magnetic flywheels or superconducting magnetic energy storage (SMES), can capture excess energy when available and release it when needed, ensuring a stable and continuous power supply. This capability is crucial for reducing reliance on fossil fuels and transitioning to a more sustainable energy mix.

Uninterrupted Power Supply (UPS)

Magnetic energy storage plays a vital role in providing uninterrupted power supply solutions. Even momentary power interruptions can severely affect critical facilities like data centers, hospitals, and industrial plants. Magnetic energy storage systems can bridge the gap between power failure and the activation of backup generators, ensuring a seamless transition and preventing data loss or equipment damage.

Electric Vehicles (EVs)

The growing popularity of electric vehicles relies on advanced energy Stored in Magnetic Fields. Magnetic energy storage technologies are being explored in EVs, offering fast charging capabilities and increased energy density. Magnetic materials like neodymium magnets are integral to the motors used in electric vehicles, highlighting the role of magnetic energy storage in the transportation sector’s electrification.

Grid Stability and Frequency Regulation

Maintaining the electrical grid’s stability is complex, especially with the increasing integration of intermittent renewable energy sources. Energy Stored in Magnetic field storage systems can stabilize the grid by rapidly responding to power demand and supply fluctuations. They can assist in frequency regulation, ensuring the grid operates at the desired frequency and preventing blackouts and voltage issues.

Space Exploration

Magnetic energy storage offers a lightweight and reliable solution in space exploration, where energy must be efficiently stored and managed for long-duration missions. Magnetic bearings, which rely on energy storage in magnetic fields, are used in spacecraft to minimize friction and wear, ensuring the longevity of critical components.

Conclusion

The concept of energy Stored in Magnetic Fields unveils the remarkable capabilities of magnets beyond their typical interactions. Understanding how energy can be harnessed and retained in this manner is fundamental to many technologies, from everyday electronics to advanced energy storage systems. As we develop more efficient energy capture and release methods, magnetic fields will play an increasingly prominent role in providing cleaner, more sustainable power sources, offering us a deeper appreciation for the potent energy within magnets.
